Overview
Accurate and stable, economical and convenient, easy to maintain, HY-DO30 dissolved oxygen brings you more convenience, create a new experience of dissolved oxygen application.
Features
▲Waterproof and dustproof housing, IP67 waterproof grade.
▲Precise & easy operation, all functions operated in one hand.
▲Unit display can be selected:ppm or %.
▲Automatic temp. Compensates after salinity /barometric manual input.

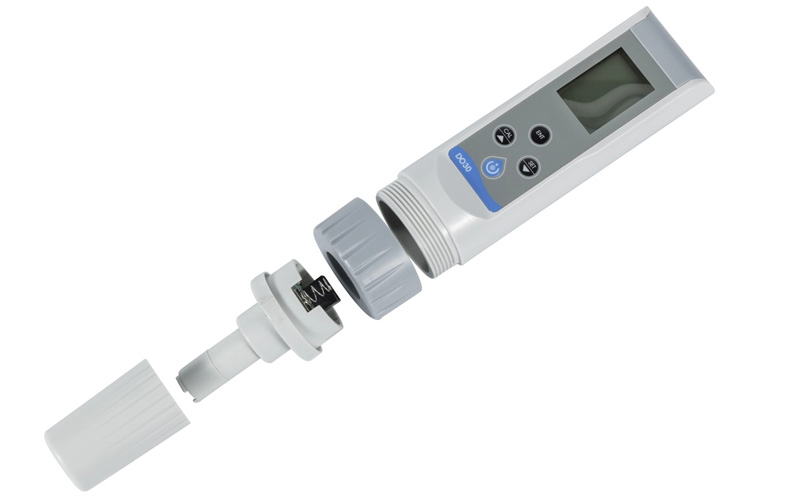

▲User replaceable electrode & membrane cap (CS49303H1L).
▲Field throw-out measurement(automatic locking function)
▲Easy maintenance, no tools needed to change batteries or electrode.
▲Backlight display,multiple line display, easy to read.
▲Self-Diagnostic for easy troubleshooting (e.g battery indicator, message codes).
▲1*1.5 AAA long battery life.
▲Auto-Power Off saves battery after 5mins non-use.
| Technical Specifications | |
| Measuring Range | 0.00 - 20.00 ppm;0.0 - 200.0% |
| Resolution | 0.01 ppm;0.1% |
| Accuracy | ±2% F.S |
| Temperature Range | 0 - 100.0ºC / 32 - 212ºF |
| Working Temperature | 0 - 60.0ºC / 32 - 140ºF |
| Auto Temp.Compensation | 0 - 60.0ºC / 32 - 140ºF |
| Calibration | 1 or 2points auto calibrate |
| ( zero calibration or 100% in air calibration) | |
| Salinity Compensation | 0.0 - 40.0 ppt |
| Barometric Compensation | 600 - 1100 mbar |
| Screen | 20 * 30 mm multiple line LCD |
| Lock Function | Auto/Manual |
| Protection Grade | IP67 |
| Auto backlight off | 30 seconds |
| Auto power off | 5 minutes |
| Power Supply | 1x1.5V AAA7 battery |
| Dimensions | (HXWXD) 185X40X48 mm |
| Weight | 95g |
-
